I. Overview

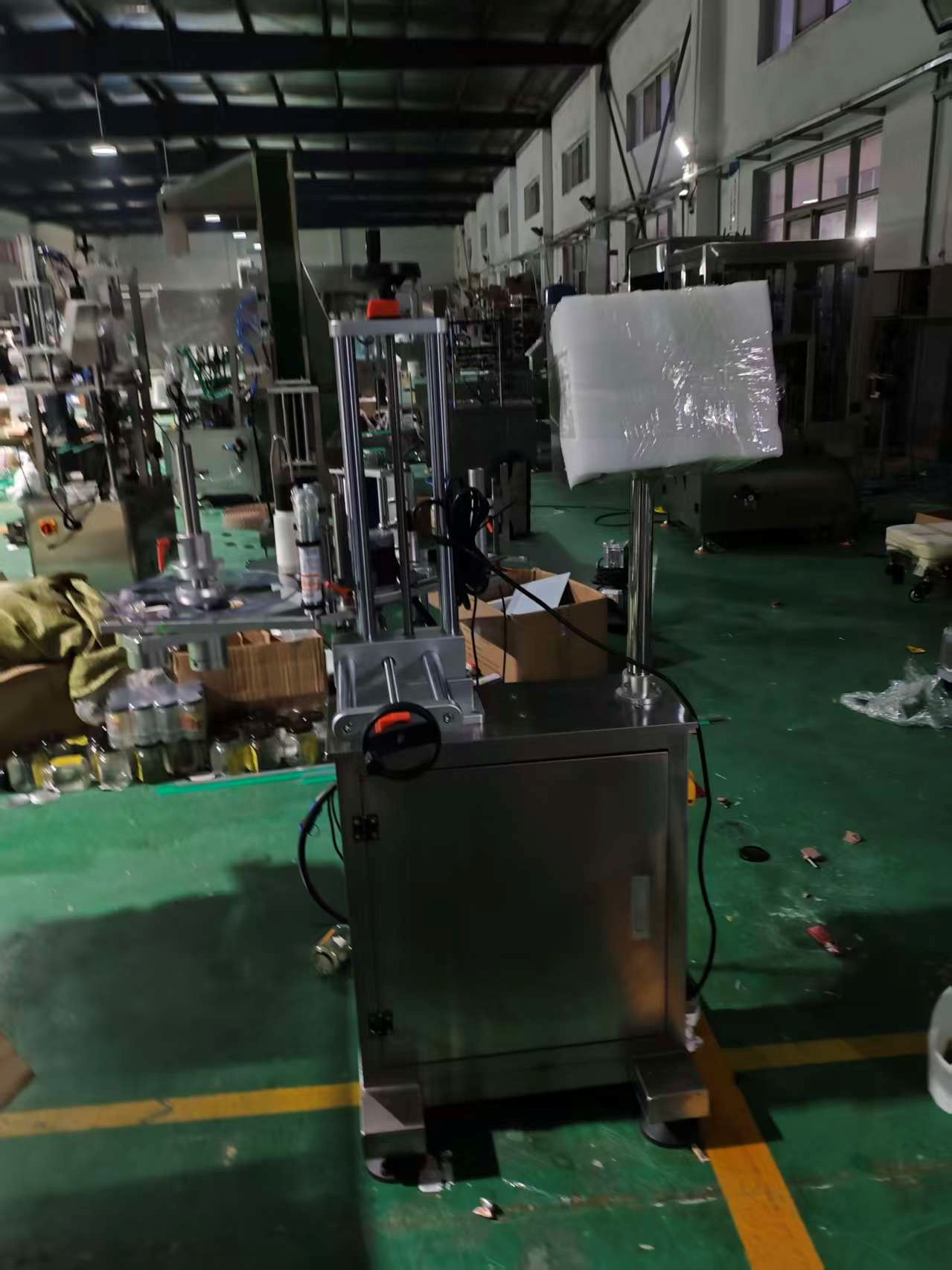

The Vertical Side-Mount Self-Adhesive Labeling Machine is designed to achieve optimized production goals. The entire labeling process is fully automated, with simple operation, high production speed, and uniform, aesthetically pleasing, and neat labeling positions. It is suitable for labeling cylindrical containers in industries such as pharmaceuticals, chemicals, and food.
II. Working Principle and Structural Features
1. Working Principle
Place different packaged items on the conveyor belt of the labeling machine. The conveyor belt drives the bottles into the bottle-separating area; as the conveying mechanism moves continuously, once the optical fiber detects a bottle, it transmits a photoelectric signal to the PLC (Programmable Logic Controller). After processing the signal, the PLC sends an output signal to the stepping motor, which dispenses the label. The label is then attached to the bottle via a rolling mechanism, and the labeled items are conveyed by the machine’s conveyor belt to the next process or container.
2. Structural Features
The main machine is driven by a stepping motor and equipped with imported original components, including a FATEK (Taiwan) PLC control system, a Kunlun Tongtai touch-type human-machine interface, and Keyence (Japan) optical fiber devices. Integrating a variety of leading technologies, it has become one of the products with technological advantages in the industry.
With microcomputer automatic control, a user-friendly touchscreen human-machine interface, and an exquisite mechanical structure, it enables simple operation and powerful functions: it can realize label quantity setting, downward counting, printing control, labeling control, as well as automatic detection and alarm for abnormal situations such as label breakage, missing labels, and no ribbon.
It also has functions including real-time production capacity display, label quantity management, label tightness adjustment, label length and gap adjustment, and main machine height and front-rear position adjustment. An optional ribbon coding machine is available, and the sensitivity of the photoelectric tubes for labeling and label detection can be adjusted.
The entire machine is made of high-quality T6 aluminum alloy and SUS304 stainless steel, with fine craftsmanship, complying with GMP (Good Manufacturing Practice) standards. The SL-R Vertical Self-Adhesive Labeling Machine is a product with excellent cost-performance.
III. Operating Parameters
- Voltage Specification: AC220V; 50/60Hz
- Power: 500W
- Production Capacity: 30–150 bottles/minute (depending on label size)
- Labeling Accuracy: ±1mm (depending on bottle roundness and verticality)
- Batch Number Printing: None
- Applicable Product Range: Outer diameter: φ20–100mm; Height: 30–200mm
- Applicable Label Range: Height: 15–150mm; Length: 20–300mm
- Maximum Label Supply: Label roll diameter: 300mm; Roll core inner diameter: 76mm
- Weight: 200kg
