I. Overview

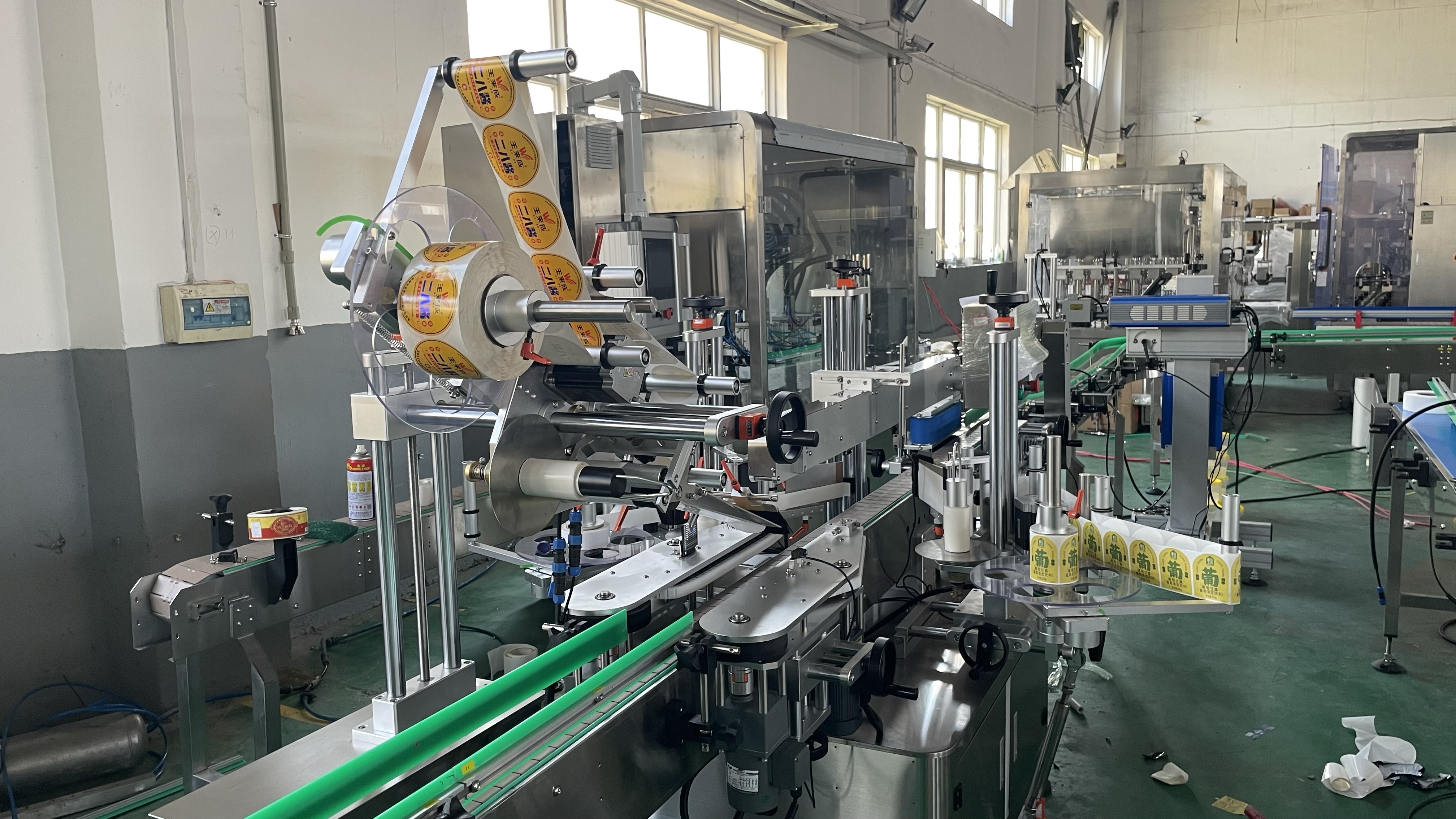

The type three-head self-adhesive labeling machine is specially designed and manufactured in accordance with the principles and technical requirements of automatic labeling. It is particularly suitable for labeling on the top surface, front and rear surfaces of products, multi-surface labeling with one label, and half-circumference labeling. It features a compact structure, light weight, simple operation, reliable operation, convenient maintenance, fast labeling speed, flat and beautiful labeling, and strong adaptability, making it an excellent product among modern labeling machinery.
The HC-SMT type three-head self-adhesive labeling machine can automatically attach labels to the designated positions of bottles and count the output. When there is a lack of bottles, the control system ensures that no labels are fed, effectively preventing label waste. In addition, the labeling speed can be infinitely adjusted according to the production characteristics of different factories, ensuring that the machine can be used independently or in line with other machines. The label pressing component enables bottles with uneven surfaces to achieve a satisfactory labeling effect.
II. Technical Parameters
(1) Bottle outer diameter: Ф 18-100mm(2) Label length: 20-200mm(3) Labeling speed: 60-150 bottles/minute (depending on bottle size and label length)(4) Labeling accuracy: ±1mm(5) Maximum outer diameter of label roll: Ф 300mm(6) Inner diameter of label roll core: Ф 76mm(7) Interval between single labels: ≥ 3mm(8) Label thickness: ＞ 8um; base paper thickness: ＞ 5um (both with a certain tensile strength)(9) Total machine power: 2500W(10) Voltage: AC220V 50/60Hz(11) Dimensions (Length × Width × Height): 2800×1500×1600mm(12) Total machine weight: 280Kg
III. Equipment Description
- Unwinding Mechanism: Used to place the self-adhesive label roll, equipped with a tension adjustment device that can stably control the unwinding speed of the label roll to avoid label wrinkling or breaking.
- Traction Mechanism: Composed of a traction motor, traction rollers, etc., it is responsible for pulling labels out of the roll material and cooperating with the label peeling mechanism to complete label peeling.
- Label Peeling Mechanism: Its core component is the label peeling plate. Through the direction change of the label tape, the label is separated from the base paper, facilitating subsequent labeling.
- Conveying Mechanism: Includes a conveyor belt, a conveying motor, and positioning devices (pressing mechanism, bottle dividing wheel). It is used to convey products to be labeled to the labeling position stably and orderly, ensuring accurate product positioning.
- Labeling Mechanism: Consists of a labeling wheel, a label pressing wheel, etc. When the product reaches the designated position, the labeling wheel attaches the peeled label to the product surface, and the label pressing wheel further compacts the label to ensure firm adhesion without air bubbles.
- Control System: Adopts a PLC controller + touch screen operation. It can set parameters such as labeling speed and labeling position, and also has functions such as no-labeling when there is no bottle.
