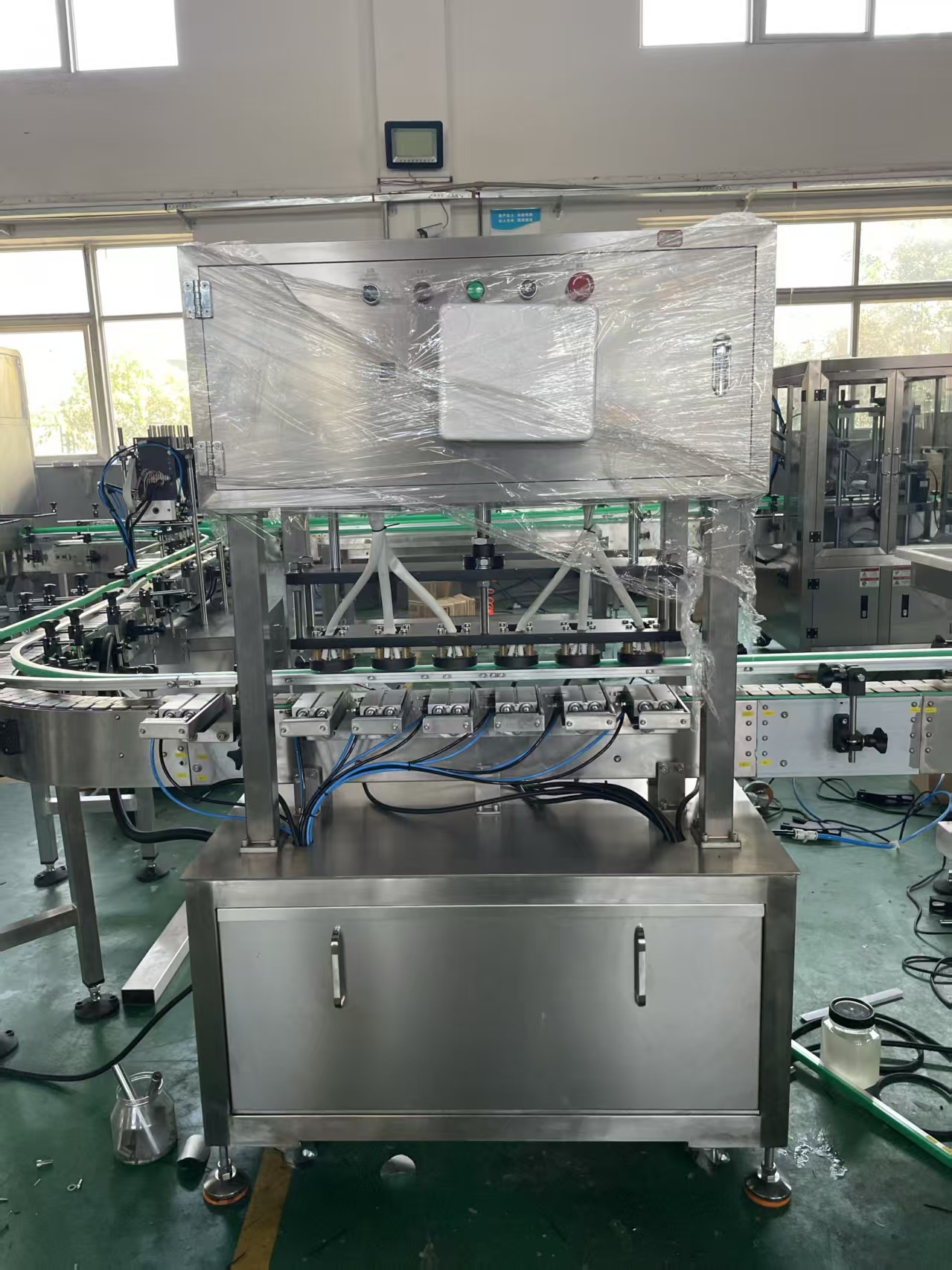

automatic (6 heads + 3 heads) aluminum membrane sealing machine for cans HC-FMJ-180
The bottle mouth film-sealing leveling and cutting machine is a post-processing device connected to the heat-sealing machine in the honey production line. It adopts an integrated process of "heating leveling + cutting" to solve common problems of film edge wrinkles and uneven dimensions after heat-sealing: first, constant-temperature pressure rollers smooth out film-sealing wrinkles, and then a high-speed rotating knife set accurately cuts off excess film edges (cutting accuracy ±0.2mm), ensuring that the neatness of the bottle mouth film-sealing edge is ≥99%. This improves the consistency of product appearance and prevents excess film edges from falling off and causing contamination during subsequent labeling and carton packing. The equipment is suitable for 100g-1000g glass/PET/PP honey bottles, seamlessly connecting with heat-sealing machines and labeling machines, and complying with food production hygiene standards.
-
Leveling Unit: Includes silicone constant-temperature pressure rollers (temperature controllable at 40-80℃ to avoid damage to the sealed film due to high temperature). The surface of the pressure rollers is covered with wear-resistant silicone (Shore hardness 60±5A) to ensure leveling without scratches.
-
Cutting Unit: Equipped with a cutter disc (blade sharpness ≤0.01mm) and a bottle mouth positioning shaft (which fixes the bottle body via vacuum adsorption, with positioning accuracy ±0.1mm).
-
Conveying and Positioning Unit: Uses a synchronous belt conveyor (belt speed matches the heat-sealing machine), and is equipped with bottle straightening guide plates and photoelectric sensors (which detect the bottle in-place signal and trigger the leveling-cutting action).
-
Sealing method: Automatic pneumatic sealing
-
Cabinet material: High-quality stainless steel and aluminum
-
Voltage: 220V/380V
-
Power: Approximately 3KW
-
Control system: PLC intelligent control
-
Sealing material: PP/PET/PE/aluminum foil composite film, etc.
-
Equipment dimensions: Length 2000mm, Width 500mm, Height 1600mm
-
Sealing speed: Approximately 1600-1800 pieces per hour (for 6-outlet operation); specific speed depends on material properties
The bottle mouth film sealing machine is a device that seals honey bottles by "direct contact between the heating module and the sealing film". It adopts constant-temperature hot pressing or pulse heat sealing technology to fuse food-grade sealing films (such as PE and PET composite films) with the surface of the bottle mouth, forming a tight sealing layer. The sealing strength is ≥2.5N/15mm and the leakage rate is ＜0.2%, which can effectively prevent honey from getting damp, being contaminated, and leaking during transportation.
The machine is suitable for 100g-1000g honey bottles made of glass, PET, and PP. It is often used as a sealing device in small and medium-sized honey production lines, or combined with filling machines and labeling machines to form a simple automated process. It complies with the food production hygiene specifications of GB 14881-2013.
