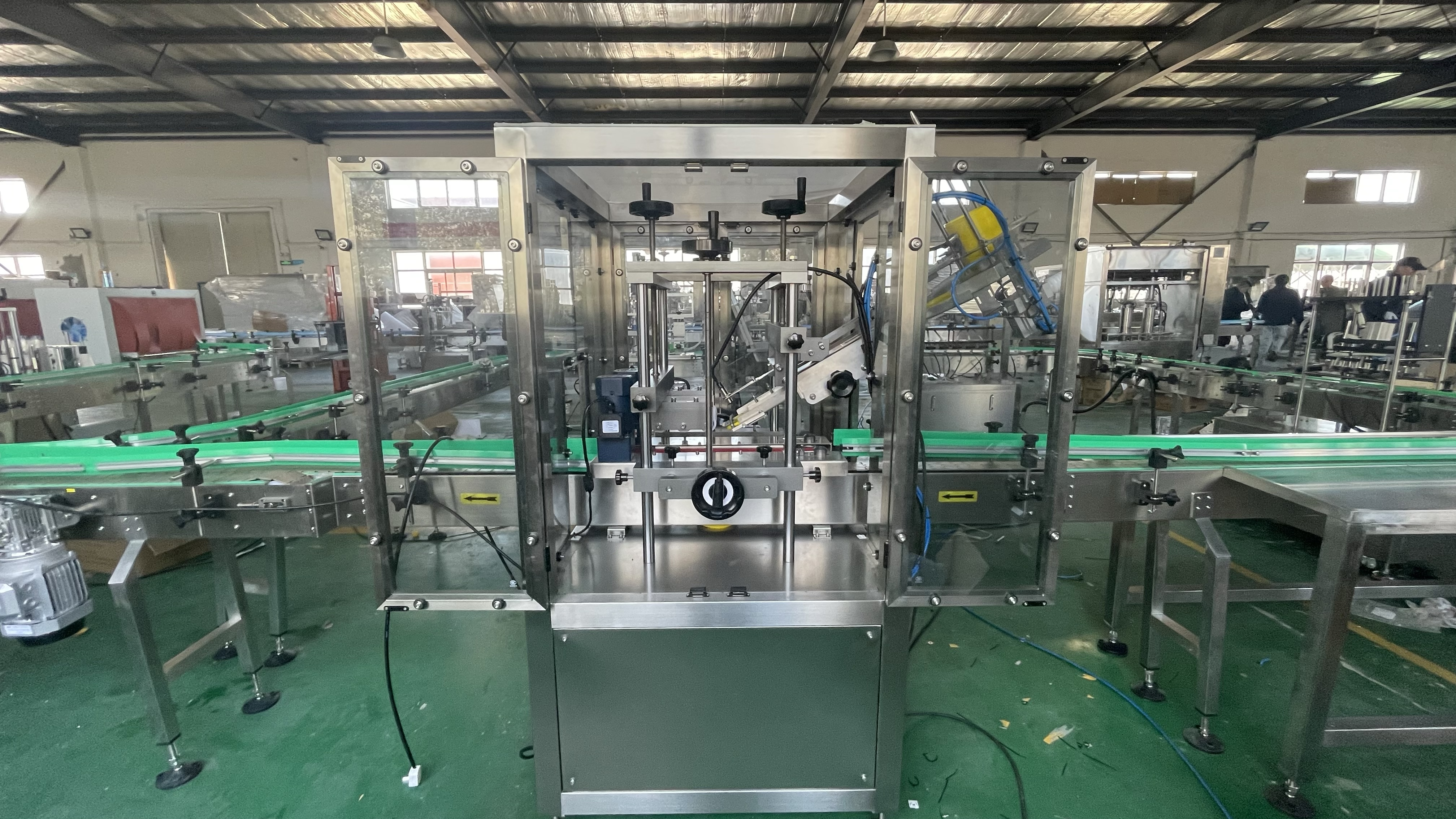

I. Product Introduction

1. This product is mainly suitable for the dust-proof rubber cap pressing and sealing of round and square containers, including various PET plastic, iron, aluminum, and paper cans. With advanced design, reasonable structure, and easy operation, it is an essential and ideal packaging equipment for industries such as food, pharmaceuticals, tea, and chemicals.
2. The main body of the product’s exterior is made of full stainless steel, featuring a simple and elegant appearance that meets the design requirements of most standard production workshops.
3. All components of this product are precision-processed. Its production technology and craftsmanship have been refined through the company’s long-term customer experience and continuous improvements. Key parts adopt a unique design, ensuring high strength, low noise, and excellent sealing performance.
4. This product complies with national standards, ministerial standards, and enterprise standards. It is only allowed to leave the factory after passing strict inspection and testing.
5. Designed for fully automatic production lines, it can be easily integrated with filling systems, weighing and filling systems, or labeling systems to form a flow production line.

II. Performance Description (Refer to the single-machine manual for specific usage methods)

1. A pneumatic suction nozzle is used to suck the rubber caps from the cap storage tank into the cap-buckling slot.
2. Cans are transported to the clamping area via the movement of the conveyor belt.
3. The clamping mechanism drives the cans to move, bringing out the caps from the cap outlet and pressing them tightly with the capping wheel.
4. For capping caps of different calibers, the clamping width can be adjusted via the adjusting handwheel, taking only 5 minutes.
5. For capping caps of different heights, the height of the capping wheel can be adjusted via the adjusting handwheel, taking only 5 minutes.

III. Main Parameters

1. Capping speed: 30-50 cans per minute
2. Applicable can height: 60-200mm
3. Applicable can diameter: 50-120mm
4. Operating temperature: 0～45℃; Operating humidity: 35～85%
5. Operating power supply: AC220V 50/60Hz
6. Total power: 0.65KW
7. Weight: Approximately 250KG
8. Overall dimensions: 200010001800mm
9. Air supply pressure: 0.6～0.8MPa; Flow rate: 0.15 cubic meters per minute
10. Installation location: Horizontal surface, no vibration
11. The equipment shell must be connected to a safe and reliable protective ground wire.
12. Keep away from or shield against strong interference sources.
13. Avoid impact or heavy pressure on the equipment.
14. Before and after operation, check whether the screws of all mechanical parts are loose.
15. The machine power must be cut off when maintaining or cleaning the machine.
16. When a fault occurs in the electrical part, non-electronic engineering technicians are prohibited from repairing it.
17. When the machine is running, do not bring any part of the human body close to the rotating parts of the machine.
18. When using an air compressor, the air supply must be stable (not less than 0.5MPa), and a dryer must be used to ensure the air entering the cylinder remains dry, so as to extend the service life of the equipment.
