I) Functional Positioning

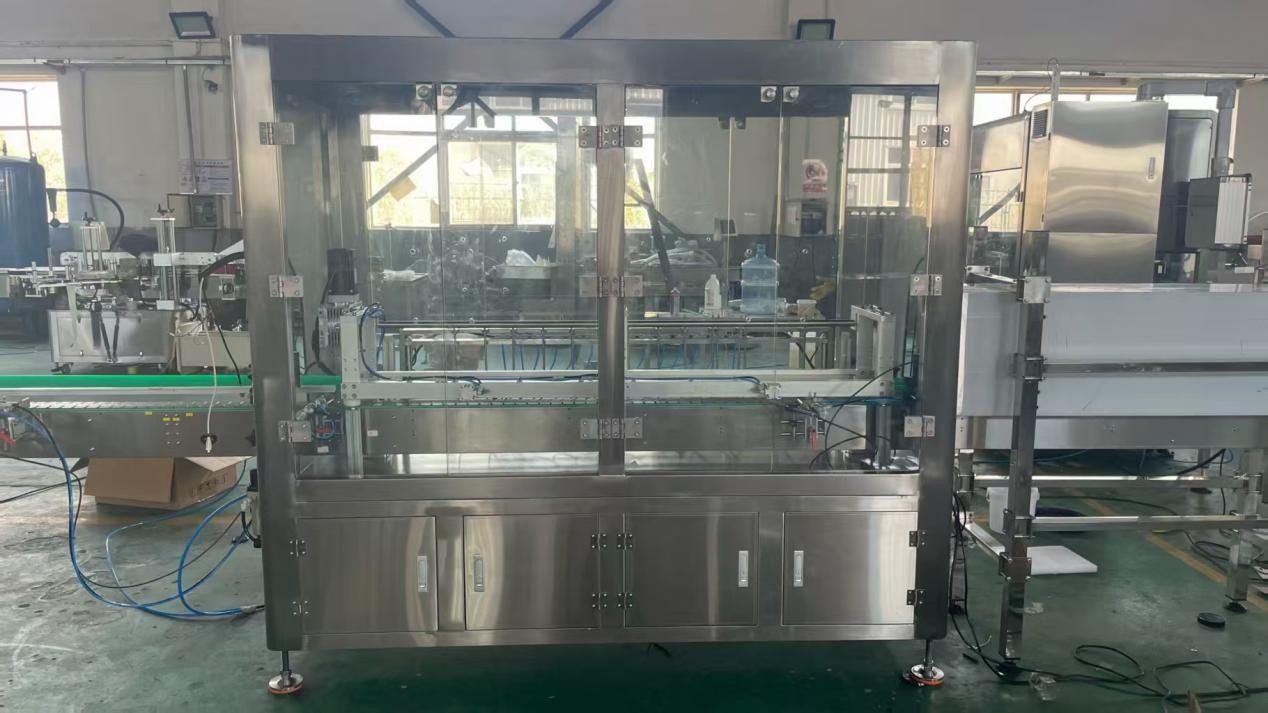

The air-blow bottle washer is a key pre-process equipment in the fully automatic honey filling production line. Specially designed for honey bottles made of materials such as glass and PET, it adopts air-blow cleaning to remove dust and foreign matter from the inner wall of empty bottles using food-grade compressed air. This provides a clean and dry container environment for the filling of high-viscosity honey, ensuring product hygiene and safety.
II) Core Structure
-
Equipment ProcessIt uses elastic high-strength mechanical arms to grip bottles, and realizes fully automated production through processes such as bottle flipping, rinsing, bottle flushing, resetting, and touch screen operation.
-
Bottle Conveying UnitIt includes a conveyor belt and bottle positioning fixtures to ensure bottles are conveyed upright and aligned with the air-blow station, adapting to bottle sizes of 100g-1000g.
-
Air-Blow Cleaning UnitComposed of special long air nozzles for the inner wall, pressure regulating valves, and filters. The height and angle of the air nozzles can be adjusted according to bottle types.
-
Detection and Control UnitEquipped with photoelectric sensors (to detect bottle feeding status), a touch screen (for parameter setting), and an alarm device (triggered when bottles are missing or air pressure is abnormal).
III) Applicable Characteristics
Material Adaptability: Compatible with non-permeable bottles such as glass, PET, and PE bottles.Capacity Matching: 1500-1800 bottles per hour (based on 200g as the reference), synchronized with the efficiency of the honey filling production line.Hygiene Standard: Parts in contact with materials are made of 316 stainless steel, and other metal parts are made of 304 stainless steel, complying with the requirements of GB 31654-2021 for food contact equipment.
Key Parameters
- Number of Filling Heads: 14 heads
- Production Capacity: 1500-1800 bottles per hour (based on 250ml honey bottles)
- Adaptable Bottle Height: 120-350mm (customizable)
- Adaptable Bottle Diameter: ø50-ø260mm (customizable)
- Overall Dimensions: 260016002100mm
